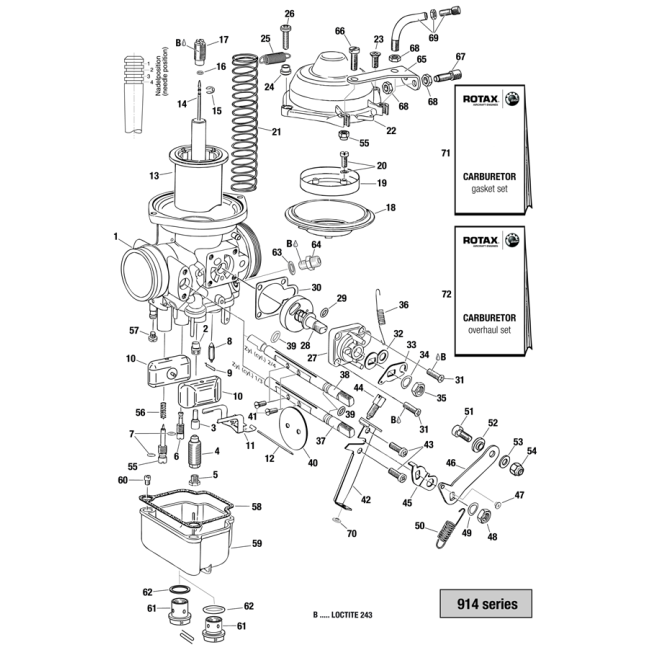

914 Series Carburetor - Single Parts

B – Loctite 243

a – For cylinder 1/3;
b – For cylinder 2/4;
c – Carburetor housing not available as spare part. Use carburetor assembly;
d – Refer to service instruction SI-03-1998 current issue;
e – With clearance for O-ring (use only together with O-ring pos. 16 P/N 950430);
f – See SI-912-012, SI-914-014 current issue;
g – For airbox P/N 667167, See SI-914-015 current issue, For engine S/N 914 UL 4,418.634;
h – For airbox P/N 867753 or 667162, See SI-914-013 and SI-914-002 current issue;
i – Package including two floats;
j – At carburetor 1/3 only 1 piece;
k – Contain parts requirement for 2 carburetors
