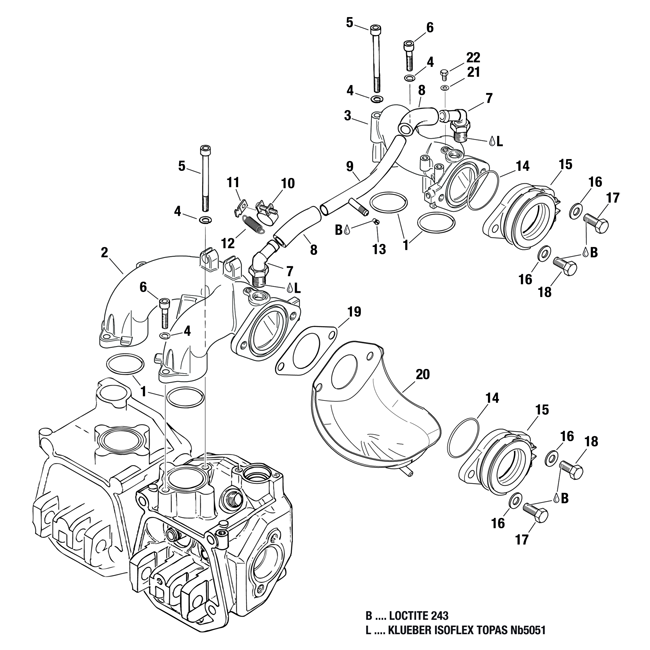

912 & 914 Intake Manifold, Compensating Tube Assy., Rubber Flange Assy.

B – Loctite 243
L – Klueber Isoflex Topas Nb5051AR – As required

a – For cylinder 2 and 4;
b – From engine 912 UL S/N 4,401.595 up to 4,402.978, 914 UL S/N 4,417.708 up to 4,417.727;
c – From engine 912 UL S/N 4,402.979, 914 UL S/N 4,417.728;
d – Up to engine 912 UL S/N (Only if the engine was not refitted with intake manifolds 867683 and 867688) 4,402.978, 914 UL S/N 4,417.727;
e – Only at intake manifold without O-ring;
f – See following Service Bulletin SB-912-030 / current issue SB-914-019;
g – Not suitable for direct installation of the air filter on the carburetor. Forseen for airboxes without drip tray;
h – For rework of exhaust port. See Maintenance Manual Heavy of the respective engine type, current issue;
i – In a roll;
j – See Service Instruction SI-914-020 / current issue SI-914-022;
k – For cylinder 1 and 3;
l – Intake manifold with connection boss for pneumatic carburetor-synchronization. From engine 912 UL S/N 4,404.045, 912 ULS 4,426.475, 914 UL 4,417.956
