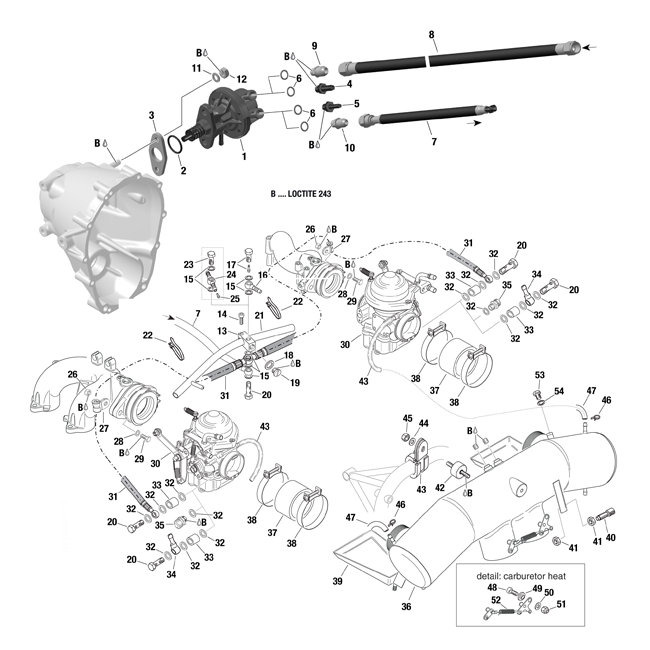

912 Fuel Pump Assy., Fuel Hose Assy., Airbox Assy.

B – Loctite 243

a – Marked with S/N. Inclusive suction and pressure line;
b – Marked with S/N;
c – With fuel pressure gauge connection, At conversion from 956312 to 956602 remove jet 963820 from banjo bolt;
d – Marked with yellow dot;
e – Drip tray for airbox P/N 867758, 667162 and 667167,
f – Drip tray for airbox P/N 867758,
g – For retrofitting see Service Bulletin SB-912-044 current issue;
h – Optional with connection flexible fuel lines;
i – See SI 912-020 current issue;
j – For steel pipe
