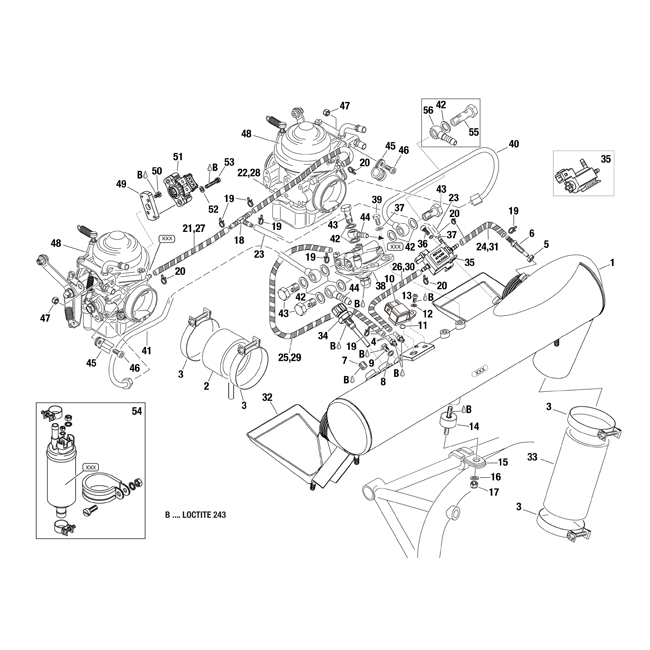

914 Airbox Assy., 3-Way Solenoid Valve Assy., Fuel Pressure Regulator

B – Loctite 243

a – Marked with S/N;
b – Only for TCU P/N 966470;
c – For cylinder 2/4;
d – For cylinder 1/3;
e – Used as water trap;
f – Also included in carburetor for 914 Cyl. 2/4;
g – Drip tray for airbox P/N 867758, 667162 and 667167;
h – For use of airbox P/N 667162. See SI-914-013 current issue;
i – For use of airbox P/N 667167, See SI-914-015 current issue;
j – For use of airbox P/N 867753;
k – New adapter flange use only together with throttle valve position sensor. See SI-25-1997;
l – See Service Instruction SI-914-022 current issue;
m – Optional for fuel pressure gauge connection;
n – Not for TCU P/N 966470
