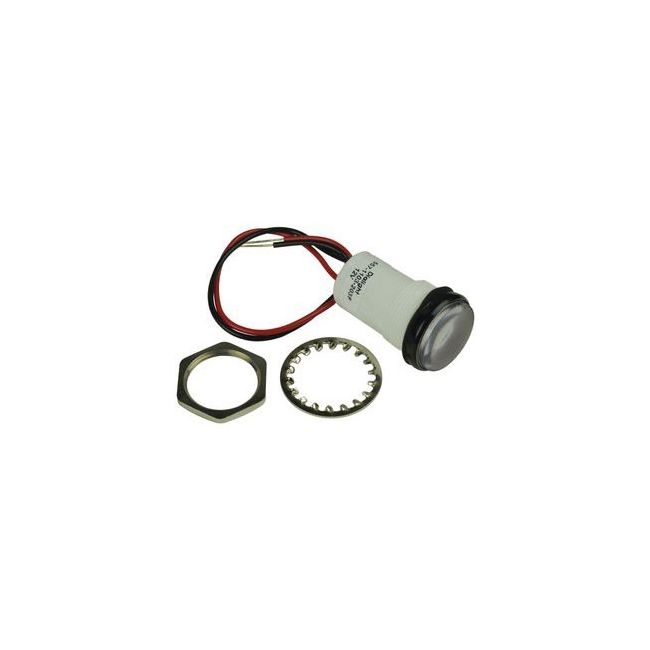

Dialight 17.8MM Red LED Panel Mount Light for EarthX Batteries

Red 17.8mm panel mount LED light that works directly with the EarthX’s ETX Hundred Series batteries (ETX680C, 680, 900, 1200) to remotely monitor battery faults internally. The 12V LED has a built in resistor for easy installation and compatibility with a 10-15V electrical system.  Details installation directions are located in the EarthX manual but it is very simple. To install, connect red wire to a positive bus connection, connect the black wire to fault monitoring wire (also black) that is located on the EarthX battery.

Specifications

Manufacturer: Dialight 557-1103-203f

Color: Red

Mounting: Nut and Washer (included)

Mounting hole size: 17.5mm/.69″

Termination style: Wire  24ga- 6″ length

Voltage: 12V

Drill bit size: .687 or 11/16″
