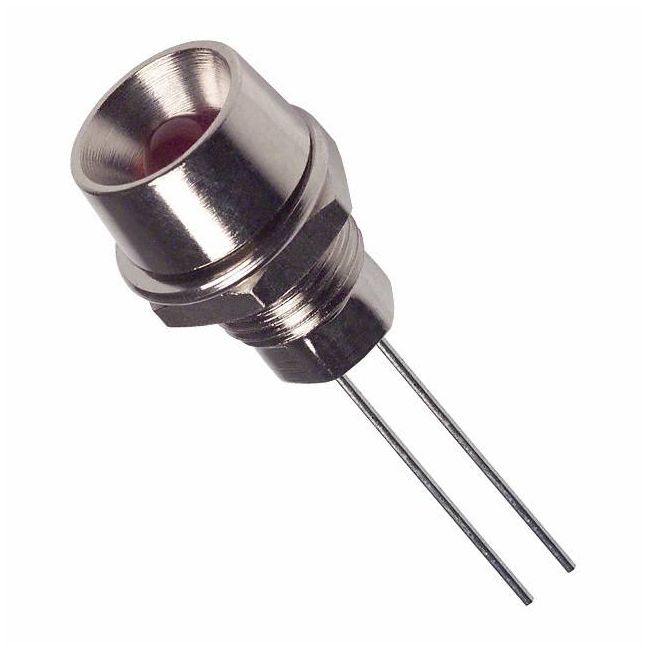

Lumex 5MM Red LED Panel Mount Light for EarthX Batteries

Red 5mm panel mount LED light that works directly with the EarthX’s ETX Hundred Series batteries (ETX680C, 680, 900, 1200) to remotely monitor battery faults internally. The 12V LED has a built in resistor for easy installation and compatibility with a 10-15V electrical system.  Details installation directions are located in the EarthX manual but it is very simple. To install, connect red wire to a positive bus connection, connect the black wire to fault monitoring wire (also black) that is located on the EarthX battery.

Specifications

Manufacturer: Lumex- SSI-LXR4815ID12VWR

Color: Red

Mounting: Nut and Washer (included)

Termination style: Wire  20ga- 48″ length

Voltage: 12V

Built in resistor: 500 ohm, 1/2 Watt

Drill bit size: .325 or 5/16″
