Vacuum System Kit by Rapco Kit, P/N RAP-VAC-K1
For Lycoming O-235, O-290, O-320, O-360, IO-360, O-540, IO-540, Rotax 912, 914. Engines with counter clockwise turning accessory drives on a standard AND20000 mounting pad.
Kit offers a convenient and cost effective pneumatic source for your aircraft gyro instruments. Comes with everything necessary to operate an attitude indicator and directional gyro (gyro instruments not included in kit). The altitude compensating regulator comes preset to 5”HG or can be adjusted as needed. The vacuum pump has an inspection port for monitoring vane wear. All parts with RA numbers are FAA/PMA approved. Weighs 4.5 Lbs.

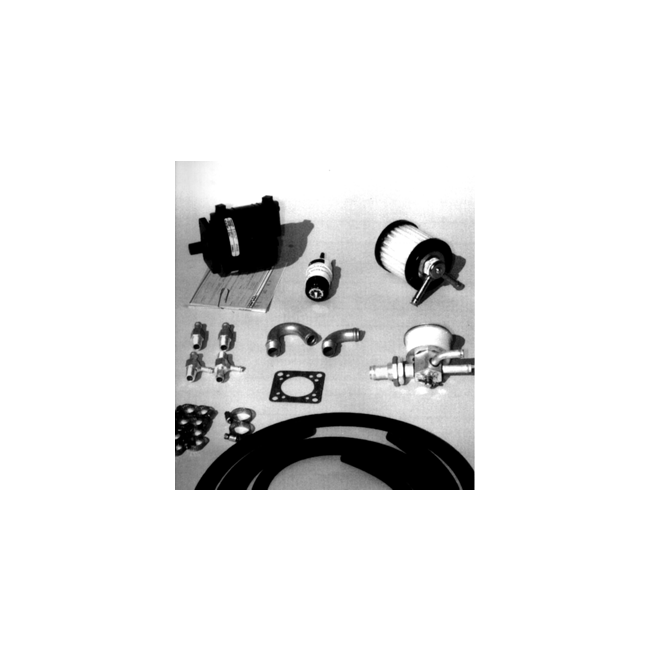

Includes: Dry Vacuum Pump RAP215CC with counter clockwise rotation (Pump rotation is determined as viewed from pilot seat or at back of pump), Vacuum Regulator with grater RA2H3-12, Filter Assembly - RA1J7-1, Suction Gauge 1” diameter, Fitting pump, 90 degree, 3/8” NPT, 5/8” hose - RA1K1-6-10, Fitting pump, 152 degree, 3/8” NPT, 5/8” hose - RA1K8-6-10, 2 Fittings instrument T, 1/4” NPT, 3/8” hose, and 1/4” hose - RA1K31-4-6-4, 2 Fittings instrument straight, 1/4” NPT 3/8” hose - RA1K10-4-6”, Hose 5/8” x 3’, Hose 3/8” x 5’, Hose 1/4” x 6’, 4 Hose Clamps # 4, 10 Hose Clamps # 8, Installation Diagram. Substantial savings over purchasing the components separately.
