This propeller mounts with 7/16" & 1/2 bolts only! Please specify bolt size when ordering. If your adapter or spacer has 3/8" bolts on the prop side contact us first before purchasing.
Prop Diameter: 72" to 68"
Spinner Diameter: 13"
Material: Carbon Fiber
Engine Suitability: Lycoming O-235, O-290, O-320, O-360 and IO-390
Engine Type: Reduction Units Only
Horsepower: 80 - 115 HP
Available Rotation: Right Hand Only
Sensenich's ground adjustable carbon propellers are manufactured using aerospace materials in a sate of the art internal pressure molded process, yielding an extremely strong yet lightweight blade.
This propeller features a co-cured metal leading edge for erosion and FOD protection. The two piece hub is CNC machined from aerospace grade aluminum billet, shot-peened for increased durability and anodized for corrosion protection.

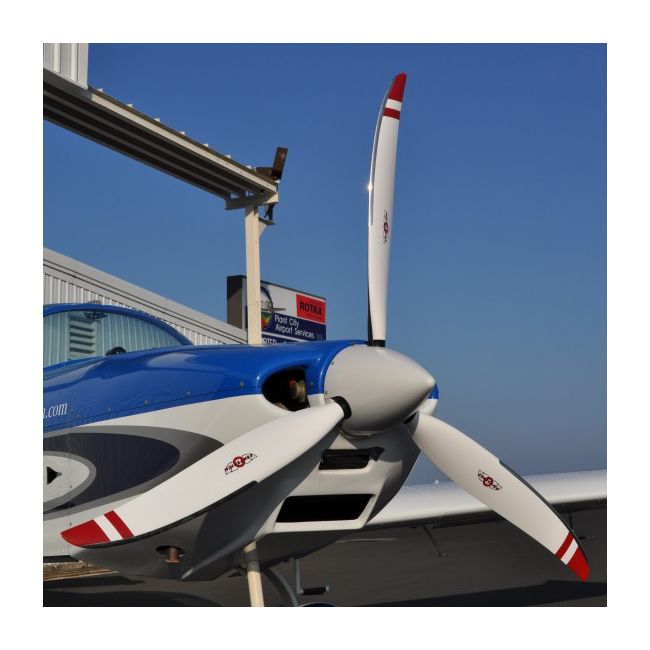

The Pitch Cylinder Hub System allows the user to set a broad range of pitches, using the system’s blade pins and gages to make adjustments. Simply loosen the hub clamping bolts, insert the desired pitch setting gage, rotate the blade pins until they touch the gage, torque the clamping bolts and go flying. This 3-blade propeller is suitable for use on the Lycoming O-235, O-290, O-320, O-360 and IO-390 engines. We have tested it up to 220HP. The blades can be trimmed from the maximum 72" diameter to 68" diameter.
A composite spinner is available for this propeller to match up to the RV cowling.
