ALUM SPOKE 6" WHEEL, 5/8" SEAL WIDE
$40.35

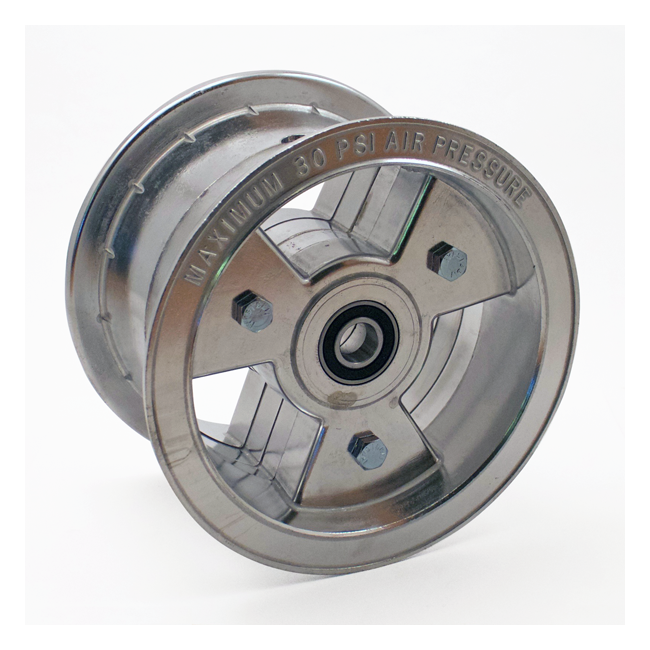

6" Wide Aluminum Spoke Wheel
Availability:
In stock
SKU
J1273
6" Wide Aluminum Spoke Wheel
6" Wide Aluminum Spoke Wheel by 4" wide, with 5/8" sealed bearing. Use tire Part No. J1291 and use tube Part No. J1312.
Adaptation of spun aluminum wheels to existing Quicksilver brakes requires some modifications that you may not be aware of. Check for the correct choice of offset wheel and a longer axle. Use the wheel hub as a guide to drill the brake drum to match - 3 bolt holes (5/16" dia.) in a triangular pattern. Assemble the wheel onto the axle with the brake band in place and determine the spacing of the drum to the wheel. Cut spacers from raw material to match P/NA1148C-2 - brake spacer raw material, 2 ft. Select a grade 5 for aircraft bolt to assemble the wheel and drum.
6" Wide Aluminum Spoke Wheel by 4" wide, with 5/8" sealed bearing. Use tire Part No. J1291 and use tube Part No. J1312.
Adaptation of spun aluminum wheels to existing Quicksilver brakes requires some modifications that you may not be aware of. Check for the correct choice of offset wheel and a longer axle. Use the wheel hub as a guide to drill the brake drum to match - 3 bolt holes (5/16" dia.) in a triangular pattern. Assemble the wheel onto the axle with the brake band in place and determine the spacing of the drum to the wheel. Cut spacers from raw material to match P/NA1148C-2 - brake spacer raw material, 2 ft. Select a grade 5 for aircraft bolt to assemble the wheel and drum.
| Retail Price | $40.35 |
|---|---|
| Udf EUC | No |
| Udf Special Order | No |
