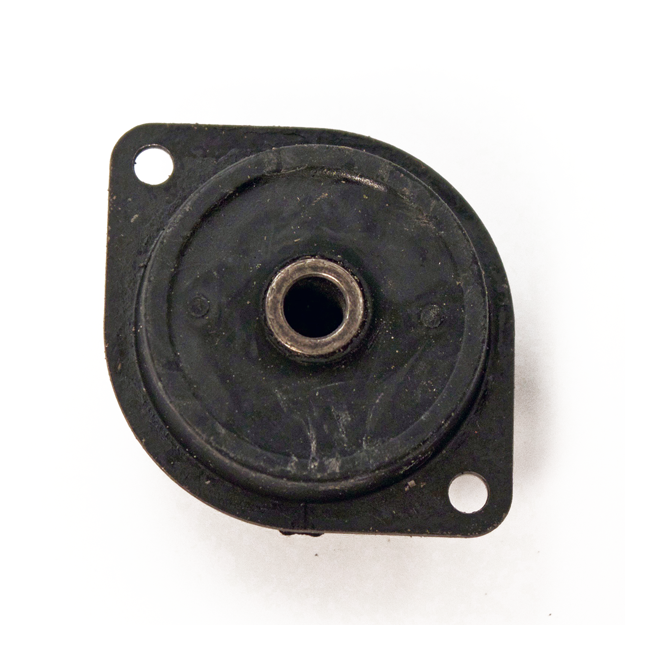

LORD ENGINE MOUNT, DIAMON
$25.25
Lord Plate Mount, Diamond
Availability:
In stock
SKU
H6140
2-hole base withstands the constant vibration and shock an engine creates. Rated load at 1/16" deflection and has maximum axial rated load of 30 lbs. For use on flat plates or angle with minimum 2" wide area.
A: 1.50, B: 1.75, C: 1.375, D: .257, E: .166, f: .050, G: .56, i: .88, K: 2.38, L: 1.938, M: .196, O: 1.28, P: .032, Q: 1.945, R: .88, S: 2.32, U: .18
A: 1.50, B: 1.75, C: 1.375, D: .257, E: .166, f: .050, G: .56, i: .88, K: 2.38, L: 1.938, M: .196, O: 1.28, P: .032, Q: 1.945, R: .88, S: 2.32, U: .18
| Retail Price | $25.25 |
|---|---|
| Udf EUC | No |
| Udf Special Order | No |
