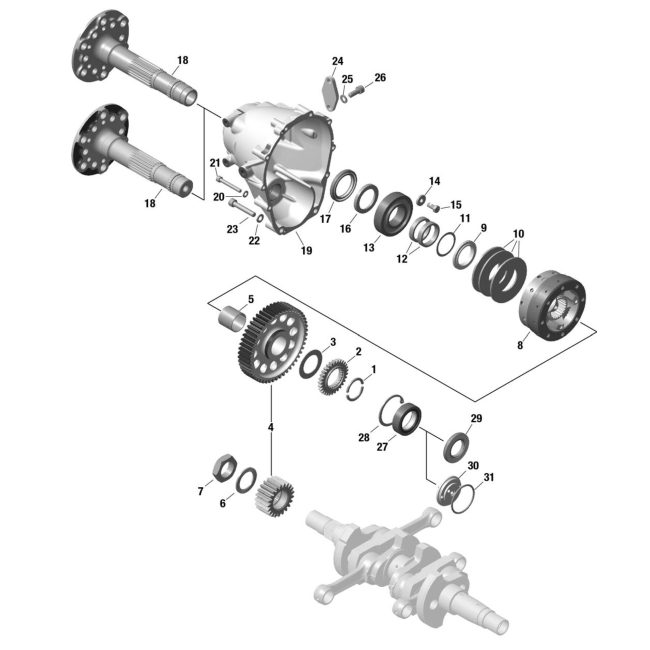

912 iS Propeller Gear Assembly w/Overload Clutch

AR – As Required

a – break away torque 700-900 Nm/516.2 ft.lb - 663.8 ft.lb., b – break away torque 600-800 Nm/442.5 ft.lb - 590 ft.lb.

In stock

SKU

912iSPropeller

Grouped product items
Fig No.	SKU	Product Name	Availability	Price
1	926-035	Ring Half	In Stock	$45.03
3	827-992	Thrust Washer 33,2/51/1,2	In Stock	$67.38
5	933-362	Bushing 31x33x29.8	In Stock	$138.38
6	845-431	Friction Washer VS30, 912iS, 912/914	In Stock	$6.71
7	842-579	Hex Nut M30x1.5	In Stock	$47.30
8	996-916	Overload Clutch Assembly	In Stock	$1,891.26
10	838-216	Disk Spring B80 80x41x3	In Stock	$17.57
11	927-401	Shim 35,4/43/0,2	In Stock	$1.72
11	927-402	Shim 35,4/43/0,5	In Stock	$1.93
11	927-403	Shim 35,4/43/1,0	In Stock	$2.66
12	847-687	Distance Sleeve 35.2/42/6	In Stock	$28.26
14	944-320	Washer 7,2/18,8/3	In Stock	$2.08
15	941-760	Hex Screw M7x16 DIN 933	In Stock	$0.93
16	926-022	Spacer Ring 36/50/5.5	In Stock	$31.90
17	950-470	Oil Seal AS 40x55x7	In Stock	$79.41
19	811-958	Gear Cover Assembly	In Stock	$1,103.66
22	944-131	Washer 8 MM	In Stock	$0.78
24	926-151	Cover	In Stock	$28.59
28	945-820	Retaining Ring 52x2	In Stock	$2.08
29	950-200	Oil Seal 30x52x7	In Stock	$82.06
30	810-301	Oil Inlet Flange	In Stock	$335.22
31	430-175	O-Ring 46x3	In Stock	$4.58

912 iS Propeller Gear Assembly w/Overload Clutch
