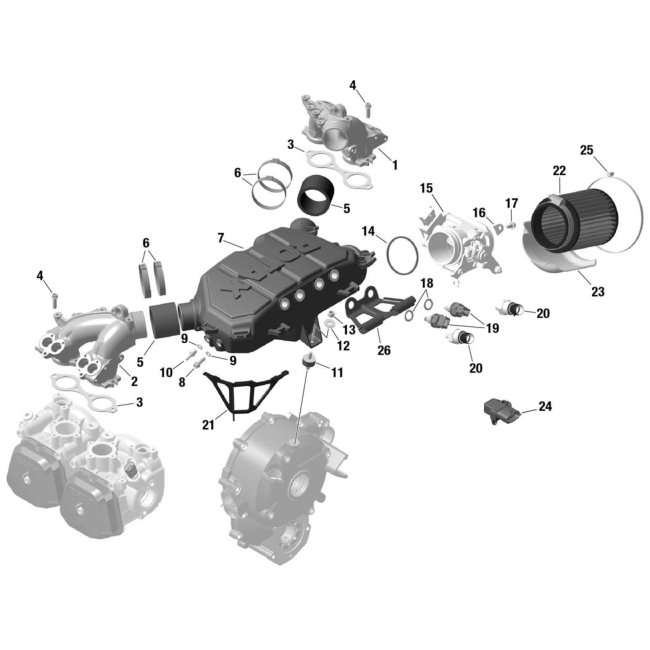

912 iS Intake Manifold, Airbox, Throttle Body Socket

a - Air filter incl. hose clamp, b - Double flange, c - Ambient pressure and temperature

In stock

SKU

912iSIntake

Grouped product items
Fig No.	SKU	Product Name	Availability	Price
1	667-400	Intake Manifold 1/3	In Stock	$528.10
2	667-405	Intake Manifold 2/4	In Stock	$528.10
4	440-207	Hex/Torx Flanged Screw M6x20 SW8/T30	In Stock	$0.58
5	460-420	Air Box to Intake Manifold Connecting Socket	In Stock	$8.88
6	853-028	1-Ear Clamp 48.3-51.5 MM	In Stock	$4.38
7	667-410	Airbox	In Stock	$1,017.26
9	230-415	Gasket Ring A6x10 DIN 7603	In Stock	$0.18
10	840-670	Hose Nipple M6	In Stock	$12.28
11	860-700	Rubber 20x10xM6	In Stock	$10.86
12	827-968	Washer 6,4 DIN 9021	In Stock	$0.23
13	842-042	Lock Nut M6	In Stock	$0.42
14	850-020	Rubber Ring	In Stock	$5.16
16	953-020	Separating Plate	In Stock	$1.14
17	440-147	Hex/Torx Flanged Screw M6x12 SW8/T30	In Stock	$0.93
18	250-015	Sealing Ring A12x18 DIN 7603	In Stock	$0.32
20	664-364	Pressure Sensor 2,0	In Stock	$525.50
21	951-560	Connector Bracket	In Stock	$63.93
23	975-100	Heat Shield	In Stock	$18.53
24	874-654	Pressure/Temp Sensor	In Stock	$378.27
25	951-500	Clamp 381x4,8 MM	In Stock	$2.29

912 iS Intake Manifold, Airbox, Throttle Body Socket

More Information
Udf EUC	No
Udf Special Order	No
