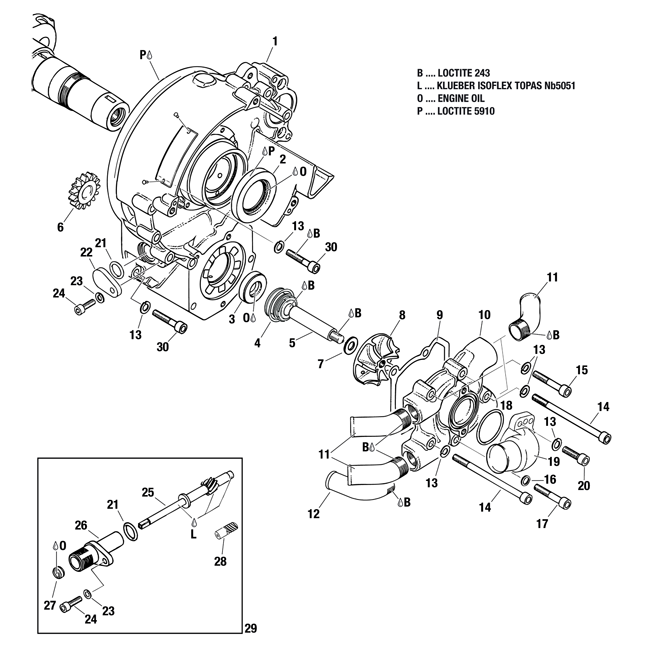

912 & 914 Water Pump with Drive

B – Loctite 243
L – Klueber Isoflex Topas Nb5051
O – Engine Oil
P – Loctite 5910

a – Stainless;
b – Optional for engine suspension frame;
c – The rotary seal was introduced from following S/N. Up to this S/N the rotary seal has to be exchanged together with P/N 850945, 926273, 922224: 912 UL 4,403.283, 912 ULS starting with serial production, 914 UL 4,417.783;
d – For mech. rev counter drive without centering bore for pick up. For engines without mech. rev. counter drive P/N 230880, 945750, 840511 has to be mounted additional;
e – See SB-914-023 current issue;
f – See Maintenance Manual Heavy of the respective engine type, current issue;
g - Without processing for mech. rev counter drive;
h – Will be delivered in circle shape.
