912 & 914 Magnetic Drain Plug, Plug Screw

912 & 914 Magnetic Drain Plug, Plug Screw

912 & 914 Oil Pump Assembly, Oil Filter, Oil Temperature Sensor, Oil Pressure Sensor

912 & 914 Oil Pump Assembly, Oil Filter, Oil Temperature Sensor, Oil Pressure Sensor

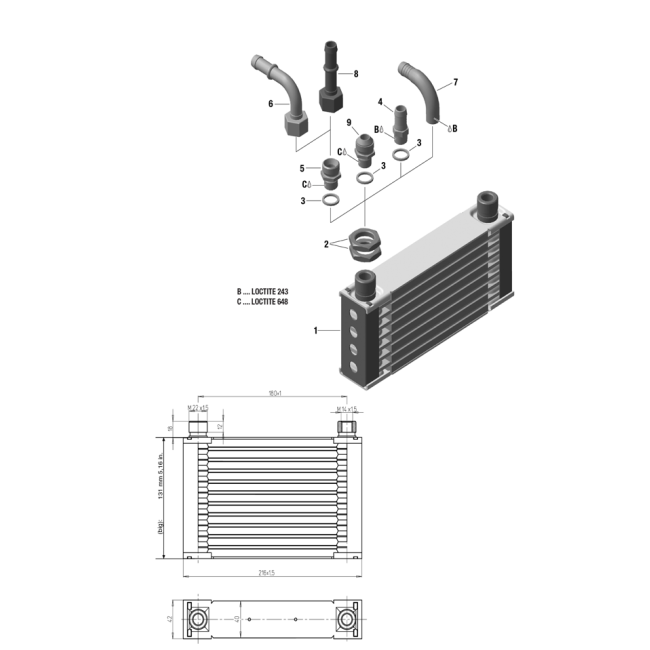

912 & 914 Oil Radiator

B – Loctite 243
C – Loctite 648

AR – As required

c – Cooling area 234 cm² / 36.27 sq. in.;
e – UNF connections

In stock

SKU

912-914Radiator

Grouped product items
Fig No.	SKU	Product Name	Availability	Price	Qty
3	230-387	Gasket Ring A 14x18	In Stock	$0.69
4	840-461	Nipple 13.2/9.5-M14x1.5	In Stock	$23.54
5	956-577	Adapter M18x1.5/M14x1.5	In Stock	$49.38
3, 5, 6	956-585	Screw Connection Set Bent	In Stock	$160.12
7	924-585	Angular Tube M14x1,5 / 22 Nm / 195 in. lb.	In Stock	$34.83
6	956-580	Bent Socket	In Stock	$40.50
8	956-610	Hose Nipple with Union Nut / Torque: 25 Nm / 19 ft. lb.	In Stock	$155.90
9	956-643	Adapter 3/4-16 UNF, M14x1.5 / Torque: 35 Nm / 26 ft. lb.	In Stock	$54.90
3, 5, 8	956-615	Screw Connection Set Straight	In Stock	$271.33
2, 3, 9	956-645	Screw Connection Set UNF	In Stock	$100.82

912 & 914 Oil Radiator
