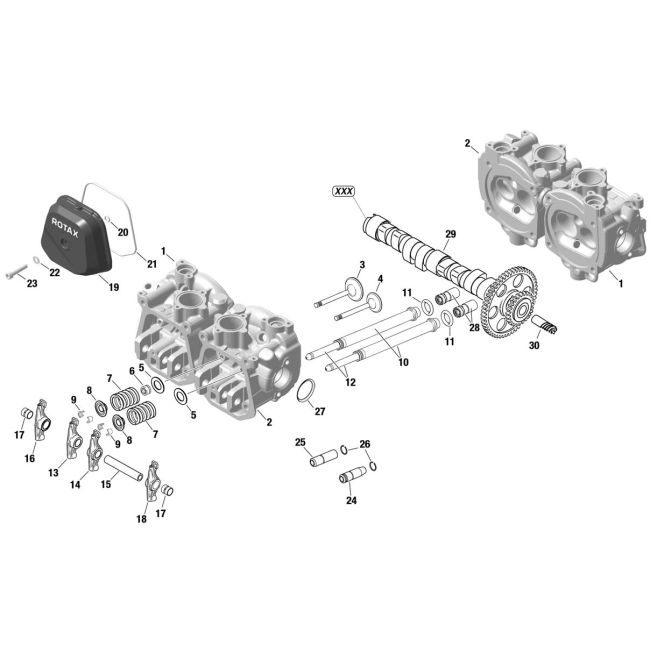

912 & 914 Cylinderhead, Valve Train, Valve Cover

C – Loctite 638
L – Klueber Isoflex Topas Nb5051
O – Engine Oil

AR – As required

a – For cylinder 2 and 3;
b – For cylinder 1 and 4;
c – Up to engine S/N 912 UL: 4,401.879, 914 UL: 4,417.597, single valve springs and double valve springs if required are allowed to be mounted in one engine;
d – From engine S/N 912 UL: 4,401.880, 914 UL: 4,417.598;
e – With sintered bronze bushing;
f – Oversize +0.2 mm (0.008 in.);
g – Rocker arm version with vespel bushing, from engine S/N 912 UL: 4,404.621, 912 ULS: 4,427.487, 914 UL: 4,418.104;
h – For inlet valve, chafe up to new measurement;
i –  For outlet valve, chafe up to new measurement;
j – Use only once!;
k – For rework of exhaust port. See Overhaul Manual of the respective engine type, current issue;
l – Marked with S/N;
m – Without worm gear;
n – Prefilled, 8 parts per set;
o – Cylinder heads where the coolant temperature is measured.
p – see SI-914-30
