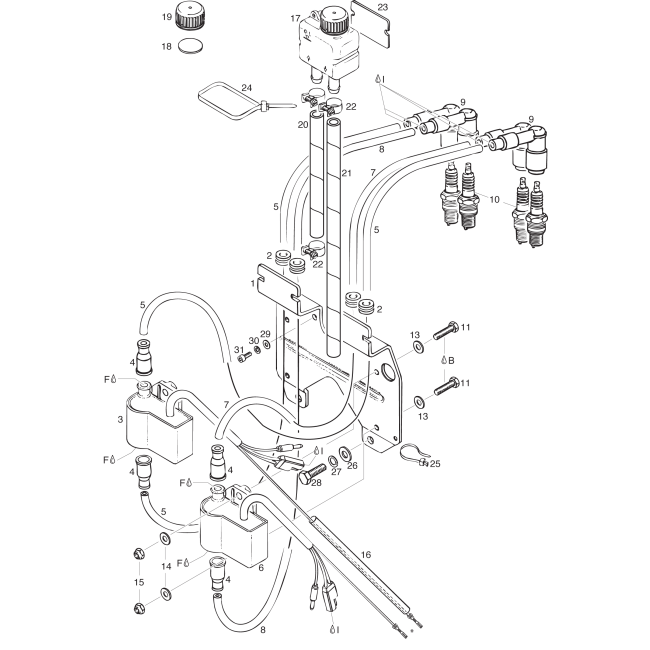

582 UL MOD. 99 Oil Tank, Ignition Coils, Support Plate

B – Loctite 242
F – Loctite 380
I – Lithium-Base Grease

AR – As required

a – For ignition circuit 1, b – For ignition circuit 2, c – To fix oil tube resp. cable harness, d – In a roll/sold per meter (39")

In stock

SKU

582ULOilTank99

Grouped product items
Fig No.	SKU	Product Name	Availability	Price
1	951-617	Supporting Plate	In Stock	$90.29
2	960-445	Grommet	In Stock	$5.43
3	966-462	Electronic Box, Circuit 1	In Stock	$290.20
4	960-550	Protection Cap	In Stock	$1.35
5, 7, 8	965-153	Ignition Cable 1,5/7MM, SOLD PER METER	In Stock	$13.03
6	966-467	Electronic Box, Circuit 2	In Stock	$290.05
9	866-705	NGK LB05EZ Spark Plug Boot	In Stock	$13.77
10	897-055	Spark Plug 14MM, NGK BR8ES	In Stock	$4.50
13, 14, 29	244-211	Washer 6.4 DIN 134	In Stock	$0.21
15	842-042	Lock Nut M6	In Stock	$0.42
16	960-187	Protection Hose 170 MM	In Stock	$4.38
17-19	956-240	Oil Tank Assembly	In Stock	$23.69
18	850-350	Rubber Gasket 26,5 MM	In Stock	$2.29
19	956-250	Oil Tank Cap S 103/2D	In Stock	$2.87
20-21	956-142	Low Pressure Hose OLN(E), SOLD PER METER, 912/914	In Stock	$96.85
22	853-515	Clamp 16/9	In Stock	$2.87
23	860-425	Rubber Spacer	In Stock	$2.87
24	951-500	Clamp 381x4,8 MM	In Stock	$2.29
25	866-710	Clamp 142x2,5 MM	In Stock	$0.07

582 UL MOD. 99 Oil Tank, Ignition Coils, Support Plate
